Quantum Dome Markers are engineered to provide 360 degree visible identification
of your underground pipelines, cables, valves and other valuable utilities. You
have a substantial investment in your underground infrastructure. Reducing
exposure to expensive accidental dig-ins and service interruptions is critical.
Quantum Dome Markers provide an economical, highly effective way to alert those
who are working or digging in the vicinity as to the location and identity of

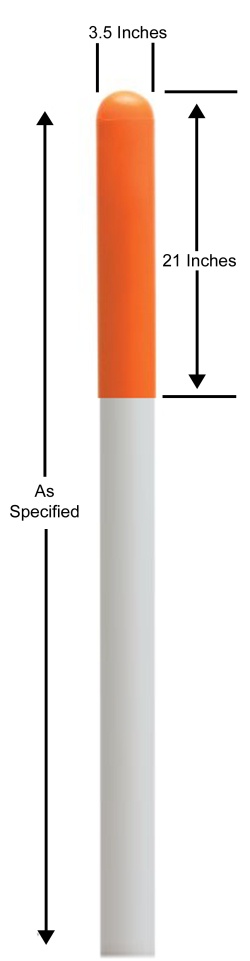

underground utilities. The dome marker post has a 3.5” outside diameter and is
available in all standard lengths and colors and comes complete with graphics and
soil anchor bar. Cathodic Protection test terminal options are also available.
Features & Benefits
The 360 ° cylindrical shape insures that the Quantum Dome Marker can be seen
from all angles on the ground and by air patrols. Post and dome colors can be
mixed to achieve specific color coding options.
Constructed from a special thermoplastic compound that is UV resistant and
extremely durable. Will not rust or rot. Never need painting. Each marker is
available with a special graphics system that utilizes a chemical etching process
that will not fade, peel or chip. Versatile
Choose from a variety of colors and sizes to match your application. Custom
warning messages are standard on both sides of the marker. Graphics are
customized to meet customer specifications and U.S. Department of Transportation
regulations. No decals needed.
All markers come complete with a soil anchor bar. Easily Installs without requiring
any special tools or equipment.
CP Test Station Options
Cathodic Protection terminals can be retrofitted to the marker designed to provide
trouble free monitoring of electrical currents & potentials on underground pipelines
& other metallic structures.
The marker post is an environmentally friendly way to identity your underground
utilities. It is 100% recyclable.
Longer life, lower maintenance and increased viability. Quantum Dome Markers
stay on the job longer with lower overall cost.
Material: High-density polyethylene (HDPE)
Weight: 0.54 lbs per foot
Width: 3.5 in.
Wall Thickness: .135
*Standard Lengths: 72, & 96 inch
*Standard Dome Colors: White, Orange, Yellow, Blue, Green, Red, Purple, Black
*Standard Post Colors: White, Orange, Yellow, Blue, Green, Red, Purple, Black
The QM-TS5 Test Station is a 3.5” diameter screw cap enclosure that protects
circuits and terminals designed to provide trouble free monitoring of electrical
currents & potentials on underground pipelines & other metallic structures. Other
applications include tracer wire terminal points and telecommunications bonding
and grounding terminals
QM-TS5 Test Stations are manufactured in the USA from high impact UV
stabilized polycarbonate. TS5 Test Stations come standard with five stainless
steel terminals and can be ordered with a High-Density Polyethylene
conduit/support post. The TS5 is also available with an optional custom graphic
sleeve (QM-350TS) that turns the test station into a highly visible pipeline marker.
